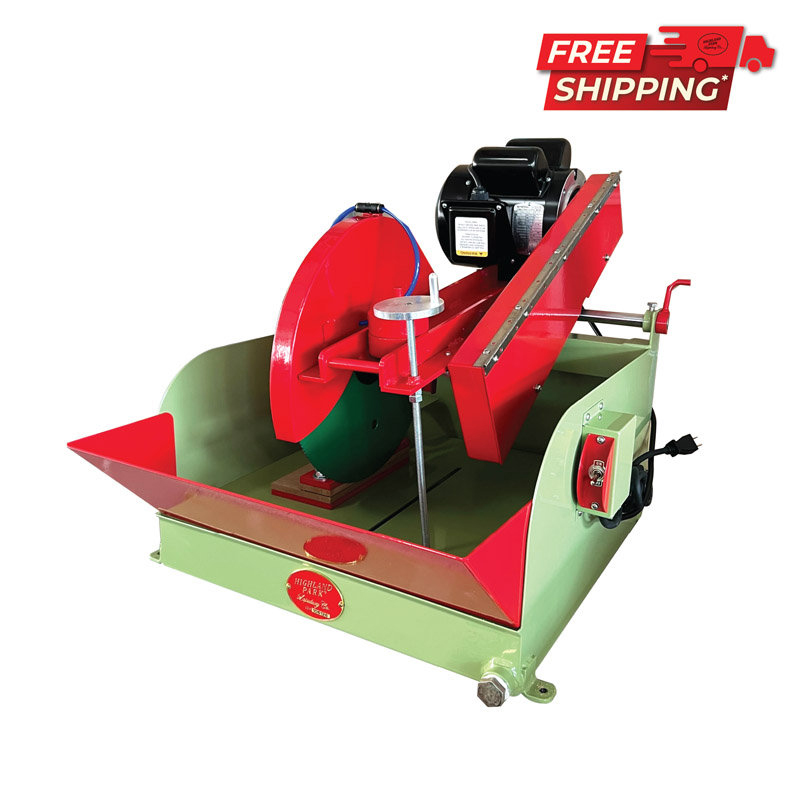

HIGHLAND PARK 14 INCH DROP SAW MODEL HTD14 WITH ADJUSTABLE GRAVITY FEED AND CROSS-FEED VISE
WORKPIECE SIZE:
5-1/2 x 7 inch Cross Section
FEATURES AND SPECIFICATIONS:
ARBOR SHAFT – Tool steel machined to 3/4 inch bearing diameter. 5/8 inch diameter for blade arbor
BLADE FLANGES – Steel 3-inch outside diameter
BLADE – Greenline Agate Eater sintered diamond blade
ADJUSTABLE GRAVITY FEED – Variable feed speed through use of balance arm and removable weights
COOLANT PUMP – Optional for recirculating cutting fluid (EC0010)
SAW BOX – Welded 14 gauge steel. Inside dimensions 20″ wide x 11″ deep x 20″ long.
DRAIN PORTS – Two 3/4 inch ports in front and rear for easy cleaning

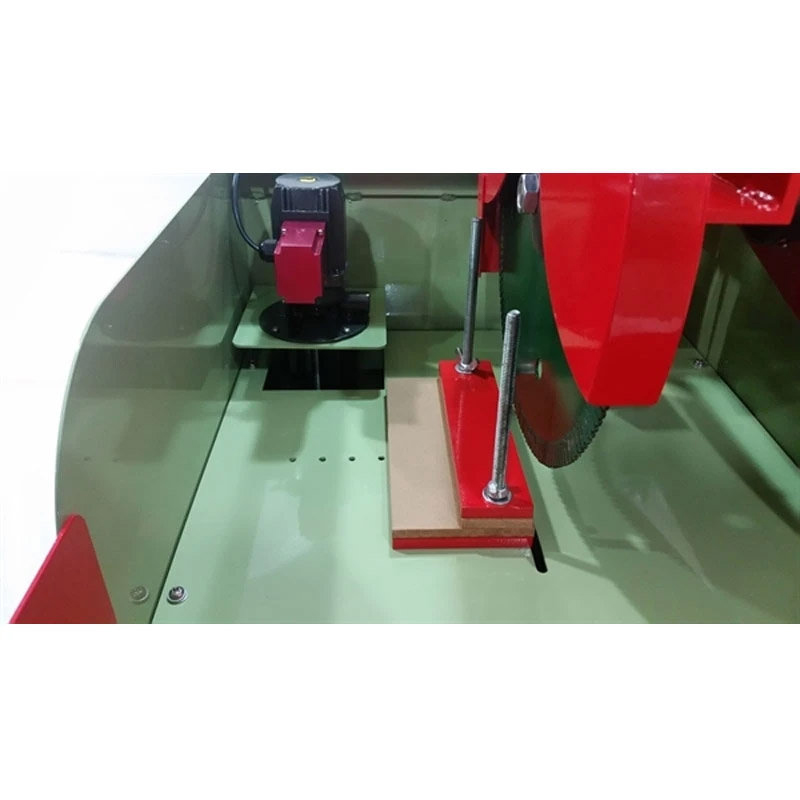

VISE – Steel vise jaws
‒ Maximum workable jaw opening 5½ x 7 inches
‒ Lateral travel of carriage assembly 5½ inches
‒ Six adjustable vise positions
V-BELT – Connects motor to saw blade
MOTOR – 110 volt 1/2 H.P. with thermal protection and start capacitor (220/230 volt 50/60 Hz available)
SHIPPING WEIGHT – 220 lbs FREE CRATE INCLUDED and NO “Handling Charges” 41 x 28 x 30 in (11.03 pcf)
FREE SHIPPING IN CONTINENTAL USA!
14 Inch HighTone Drop Saw 110V
$1,672.00
Availability: In stock
14 Inch HighTone Drop Saw 110V
$1,672.00
Availability: In stock
Images
Specs
HIGHLAND PARK 14 INCH DROP SAW MODEL HTD14 WITH ADJUSTABLE GRAVITY FEED AND CROSS-FEED VISE
WORKPIECE SIZE:
5-1/2 x 7 inch Cross Section
FEATURES AND SPECIFICATIONS:
ARBOR SHAFT – Tool steel machined to 3/4 inch bearing diameter. 5/8 inch diameter for blade arbor
BLADE FLANGES – Steel 3-inch outside diameter
BLADE – Greenline Agate Eater sintered diamond blade
ADJUSTABLE GRAVITY FEED – Variable feed speed through use of balance arm and removable weights
COOLANT PUMP – Optional for recirculating cutting fluid (EC0010)
SAW BOX – Welded 14 gauge steel. Inside dimensions 20″ wide x 11″ deep x 20″ long.
DRAIN PORTS – Two 3/4 inch ports in front and rear for easy cleaning
VISE – Steel vise jaws
‒ Maximum workable jaw opening 5½ x 7 inches
‒ Lateral travel of carriage assembly 5½ inches
‒ Six adjustable vise positions
V-BELT – Connects motor to saw blade
MOTOR – 110 volt 1/2 H.P. with thermal protection and start capacitor (220/230 volt 50/60 Hz available)
SHIPPING WEIGHT – 220 lbs FREE CRATE INCLUDED and NO “Handling Charges” 41 x 28 x 30 in (11.03 pcf)
FREE SHIPPING IN CONTINENTAL USA!
Manuals
Parts
Videos
Shipping & Returns
Product Overview
Model HTD14 lapidary diamond saw – 14 inches glass coldworking and lapidary equipment drop saw with heavy gauge powder-coated steel tank, adjustable gravity feed, crossfeed carriage, and 1/2 HP 110v motor. Greenline Agate Eater sintered diamond blade is included. (Pump not included)
