Description

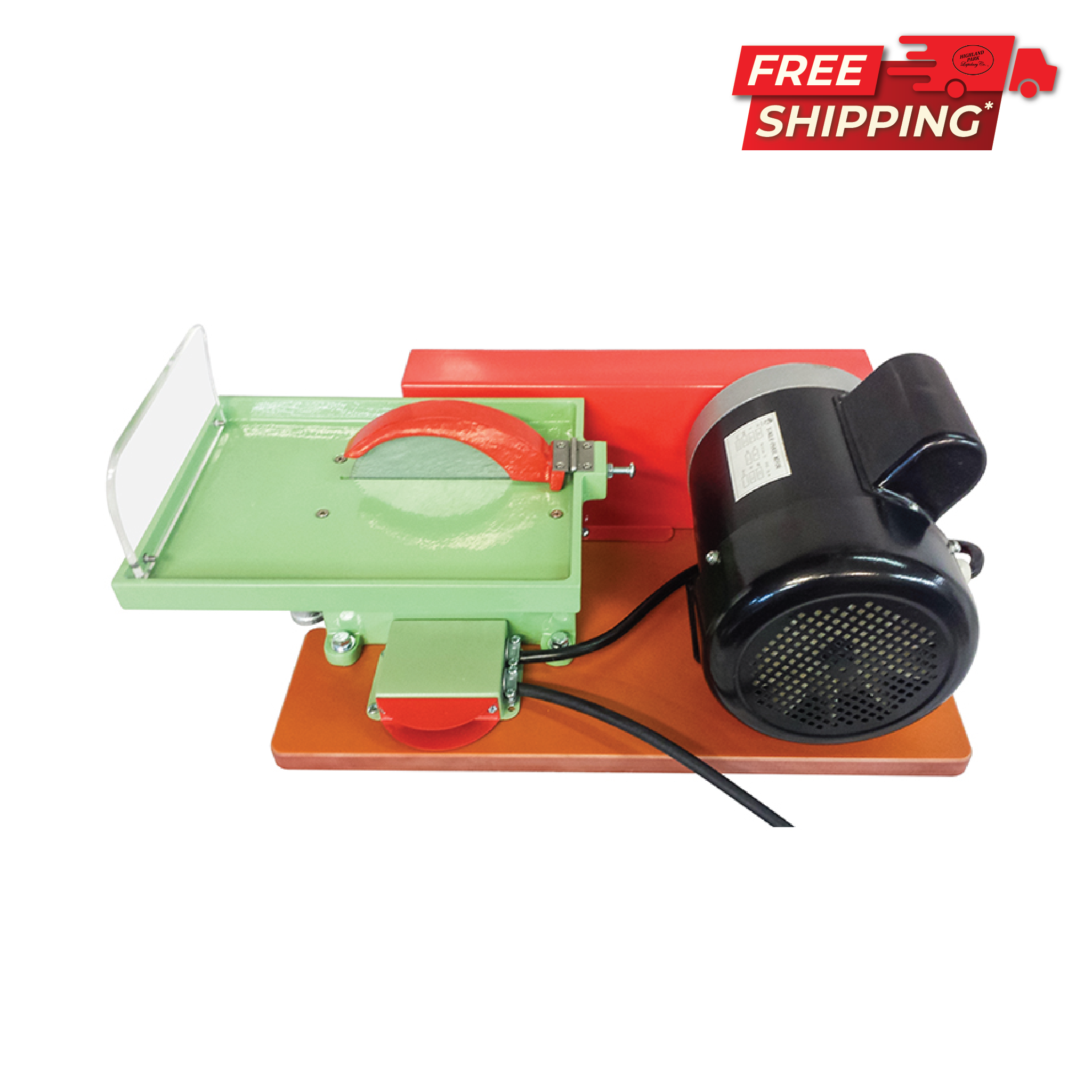

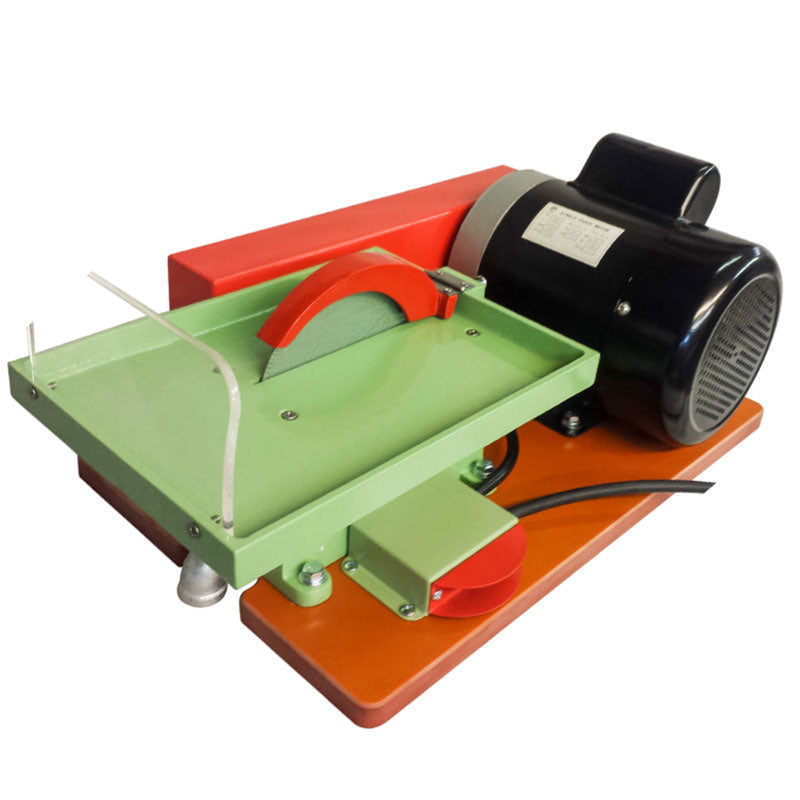

Model 6 lapidary diamond saw – 6-inch precision glass coldworking and lapidary equipment trim saw with rugged cast aluminum cutting deck and tank and 1/2 HP 110v motor. Thinline Agate Slicer diamond blade is included in the machine.
Specifications
HIGHLAND PARK 6 INCH HIGH-SPEED TRIM SAW MODEL 6
FEATURES AND SPECIFICATIONS:ARBOR SHAFT – Cold-rolled steel machined to ½ inch diameter bearing; 5/8 inch diameter for diamond saw blade
BEARINGS – Factory lubricated and sealed ball bearings
BLADE – 4 inches up to 6 inches; includes a ThinLine Agate Slider sintered diamond blade.
WORKPIECE SIZE - The Model 6 will cut stones up to 2" in size
BLADE FLANGES – Steel with 1⅓ inch outside diameter
BLADE SPEED – Blade runs at 1400 RPM
BLADE COOLANT DEFLECTOR – Adjustable for the height of the workpiece
DRAIN PORT – Can be found in front
SAW BOX – Made with cast aluminum with dimensions of 8½ x 11½ inch cutting deck; overall height is 8 inches.
V-BELT – Connects the motor to the saw blade
MOTOR – 1/2 HP with 110 volt 60 Hz
SHIPPING WEIGHT – 50 lbs
FREE SHIPPING IN CONTINENTAL USA!
MORE INFORMATION
What to look for in a trim saw
THE AFFORDABLE INDUSTRIAL GRADE TRIM SAW
TThe Highland Park Model 6 trim saw is an excellent general purpose trim saw that accommodates 4 or 6-inch blade for preforming cabs and gems for faceting and cabbing. It is ruggedly built to be trouble-free and provide the serious lapidary a lifetime of pleasure and satisfaction while cutting. Its dimensions are compact, therefore, trim saw is perfect for any packed or spacious studio.
