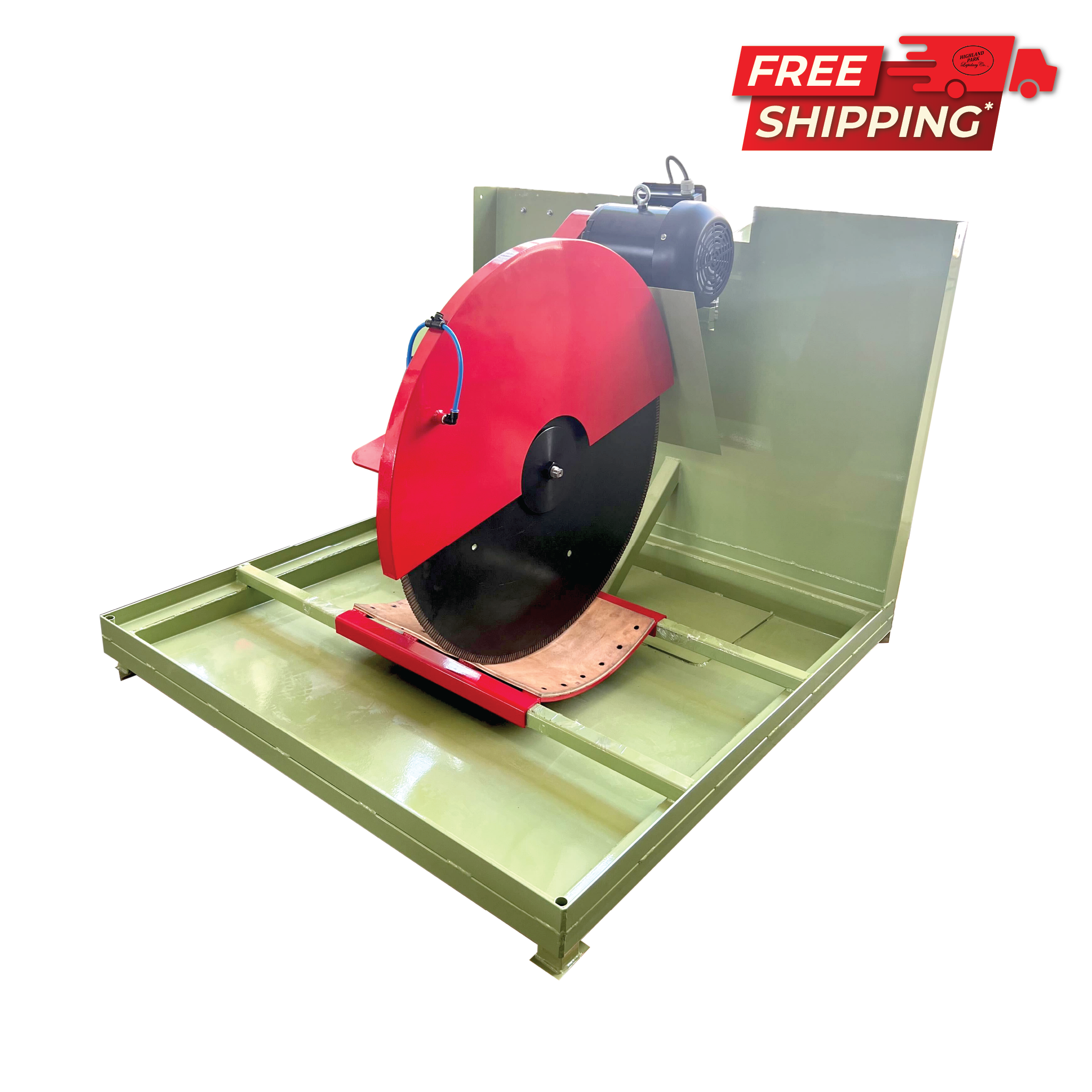

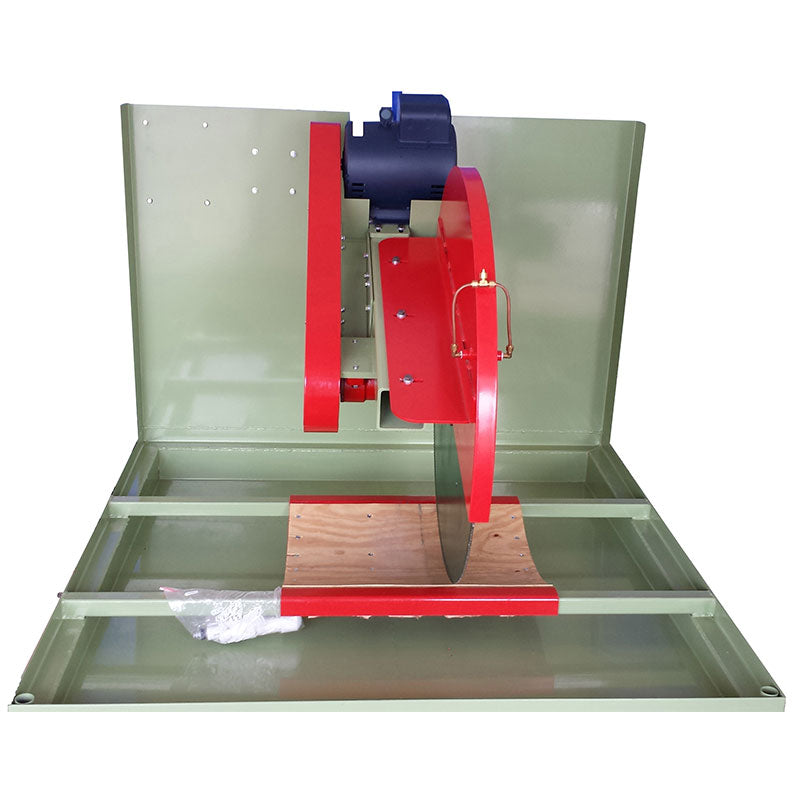

36 inch hydraulic drop saw Model 36D 220V 60Hz with Greenline Agate Eater blade

Highland Park LapidarySKU: Model 36D-220

Price:
$6,597
Stock:
In stock


Description

Model 36D lapidary diamond saw is a 36-inch hydraulic drop saw with a 3 HP 220v motor. Comes with a Greenline Agate Eater blade.

Video

Model 36D Overview

Model 36D Operation Overview

Model 36D Wiring Basics

Specifications

HIGHLAND PARK STYLE 36 INCH DROP SAW MODEL 36D WITH AIR OVER OIL HYDRAULIC CONTROL AND FREE BLADE



WORKPIECE SIZE:

Up to 14 inch by 51 inch cross section (more if extending piece beyond unit)

FEATURES AND SPECIFICATIONS:

ARBOR SHAFT – Cold rolled steel machined to 1-3/8 inch diameter. 1 inch diameter for diamond saw arbor

BLADE FLANGES – Steel 7¾ inch outside diameter

BLADE – Greenline Agate Eater segmented 36 inch blade included

HYDRAULIC SYSTEM – Air over oil for lifting saw arm. Stainless steel cylinders and precision brass metering valves

CARRIAGE – 1/2 plate steel carriage for use with ratchet straps to securely hold material

WAYS – 1.57 inch square cold rolled steel structural tubing

SAW BOX – Welded 1/4 inch (.236) thick heavy duty steel framework. Inside pan dimensions 51" wide x 4" deep x 51" long. Overall height – 50 inches.

COG BELT – Connects motor to saw blade for no slipping

MOTOR – 220 volt 60 Hz 3 H.P. TEFC with thermal protection and start and run capacitors (230 volt 50 Hz available)

SHIPPING & WEIGHT – 1376 lbs. FREE CRATE INCLUDED and NO “Handling Charges”  86 x 64 x 54 in (8.00 pcf)

YOU WILL NEED TO ARRANGE AND PAY FOR A FORKLIFT TO UNLOAD THE CRATE WHEN IT ARRIVES. The carrier will be requested to call ahead to schedule a delivery appointment

VIDEOS:

Highland Park Lapidary 36 Inch Drop Saw Basics

MORE INFORMATION:

What to look for in a slab saw

How Highland Park Builds a Slab Saw

Owners Manual

COVETED BY COMMERCIAL STONE PRODUCT MANUFACTURERS

The massive Model 36D is used by commercial cutters and lapidary clubs to reduce huge boulders and petrified wood logs to sizes that can be cut on smaller saws.  Built for commercial use, it is is the most rugged drop saw available.
