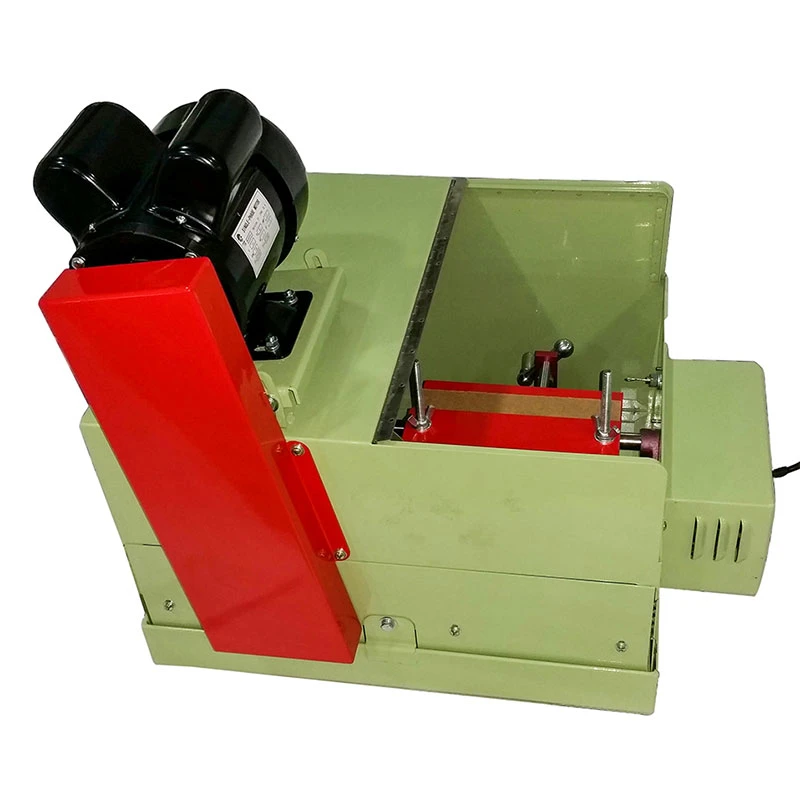

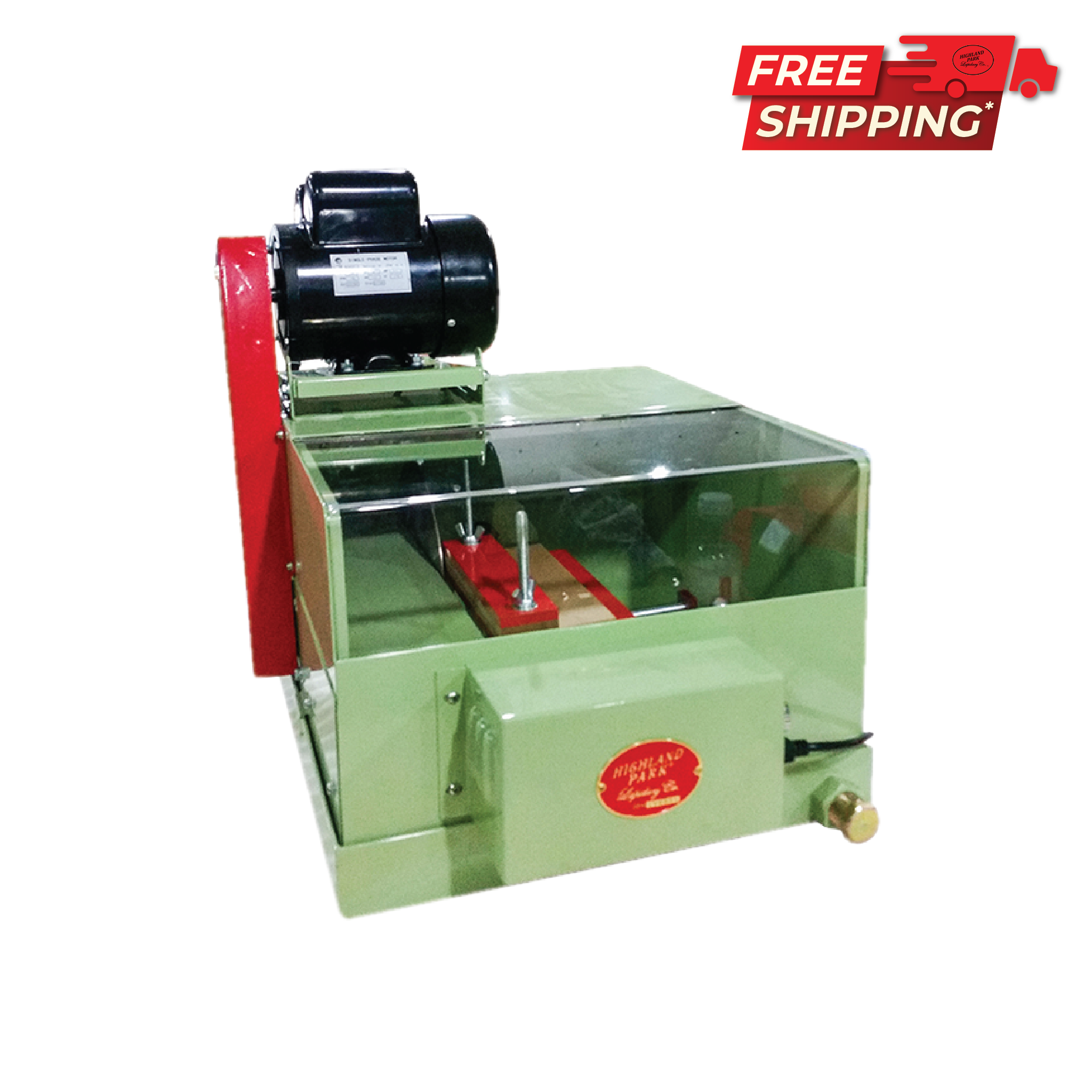

10 Inch HighTone Slab Saw 110V with ThinLine blade

Highland Park LapidarySKU: Model HT10-110

Price:
$1,497
Stock:
Out Of Stock


Description

Model HT10 lapidary diamond saw ‒ 10 inch glass coldworking and lapidary equipment precision slab saw with heavy gauge, powder-coated steel tank, powerfeed, crossfeed vise and 1/2 HP 110v motor. Thinline Agate Slicer sintered diamond blade is included.

Video

HT10 Overview

HighTone Series Sheetmetal & Arbor Performance

What Makes A Good Arbor Bearing



Specifications

HIGHLAND PARK 10 INCH SLAB SAW MODEL HT10 WITH POWERFEED AND CROSS-FEED VISE

WORKPIECE SIZE:

3-1/2 x 7 inch Cross Section

FEATURES AND SPECIFICATIONS:

ARBOR SHAFT – Tool steel machined to 3/4 inch bearing diameter. 5/8 inch diameter for blade arbor

BLADE FLANGES – Steel 2-inch outside diameter

BLADE - ThinLine Agate Slicer sintered diamond blade

SAFE START SYSTEM - Contactor control system reduces the risk of accidental startup

AUTOMATIC CUT-OFF SWITCH – Adjustable for length of cut

POWERFEED –  Approximate workpiece infeed rates 11¼ inches per hour, 3/16 inches per minute

SPLIT NUT DRIVE – Engages carriage with powerfeed screw. Released by a flip of the handle for quick carriage return

PRECISION CARRIAGE – Carriage rides on precision-ground hardened steel rails

CROSSFEED WAYS – 1/2 inch precision ground steel

SAW BOX – Welded 16 gauge steel. Inside dimensions 17¾ inches wide x 13 inches deep 19¾ inches long. Overall height – 23 inches

DRAIN PORT – 1 inch for easy cleaning

VISE – Steel vise jaws

‒ Maximum workable jaw opening 3½ x 7 inches

‒ Lateral travel of vise assembly 2 inches

V-BELT – Connects motor to the saw blade

MOTOR –  1/2 HP 110 volts 50/60 Hz

WEIGHT ‒ 100 lbs



All Highland Park slab saws come ready to run from the factory precision aligned to a tolerance of +/-.03mm +/- .001 inch

FREE SHIPPING IN CONTINENTAL USA!

MORE INFORMATION

What to look for in a slab saw

How Highland Park Builds a Slab Saw

Owners Manual

What Coolant Should I Run?
