Description

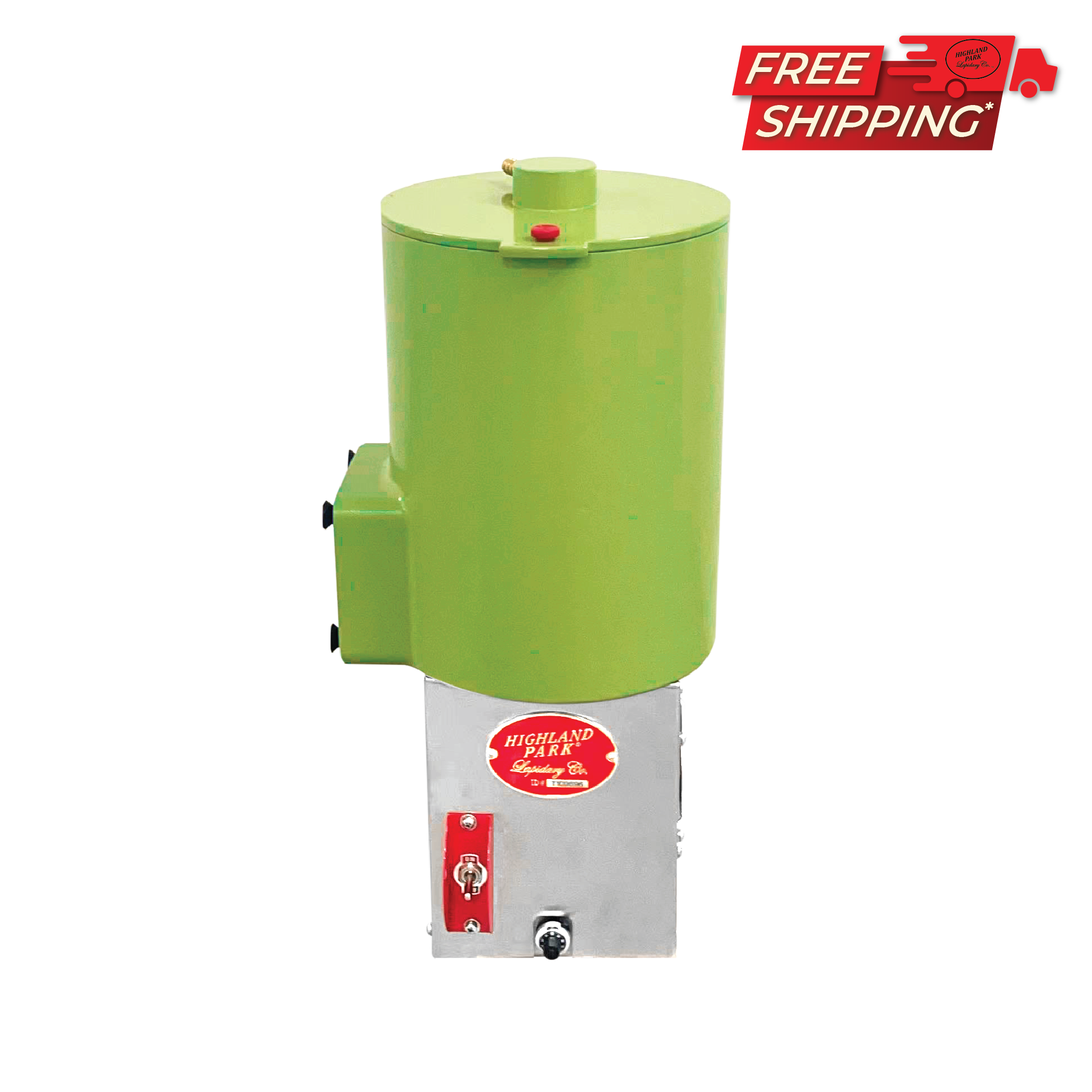

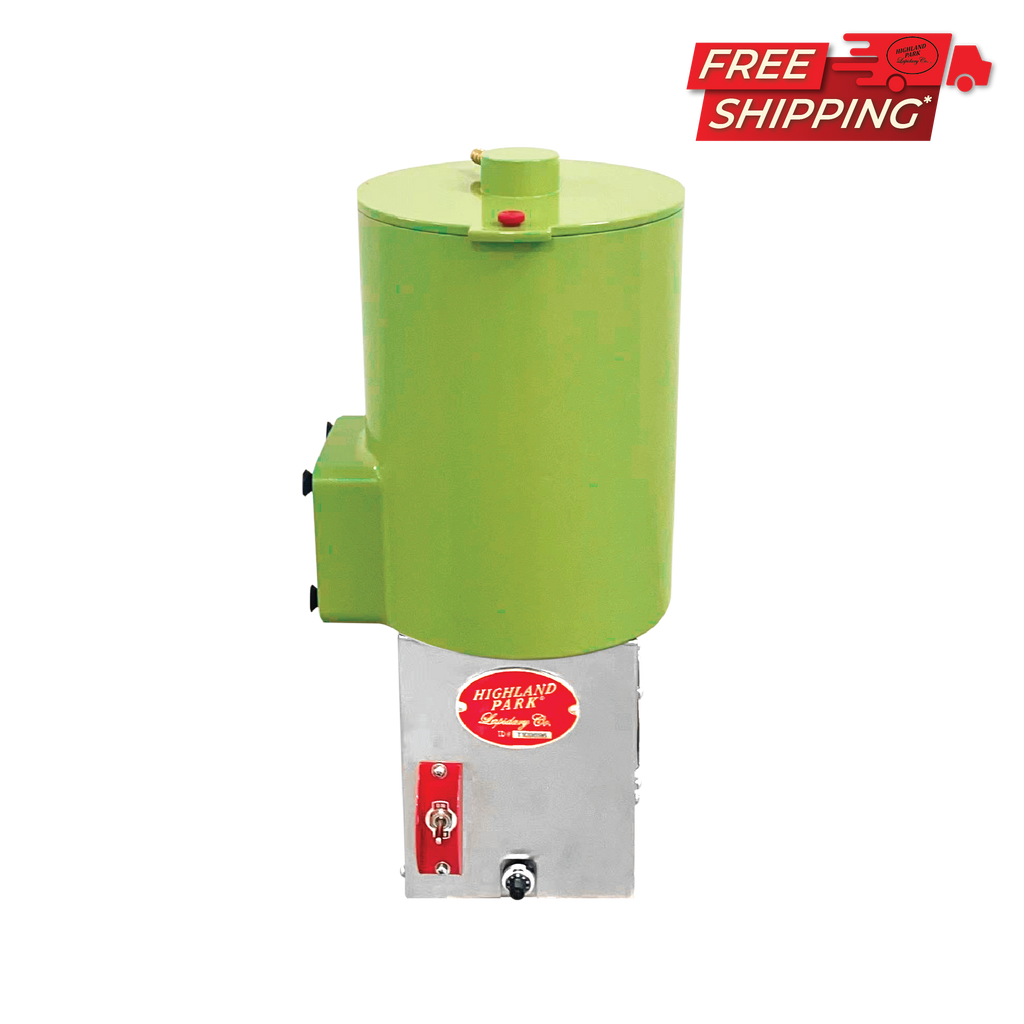

EverClean II integrated oil cleaning system with Variable Speed 48V DC brushless motor
EverClean II integrated oil cleaning system with Variable Speed 48V DC brushless motor.

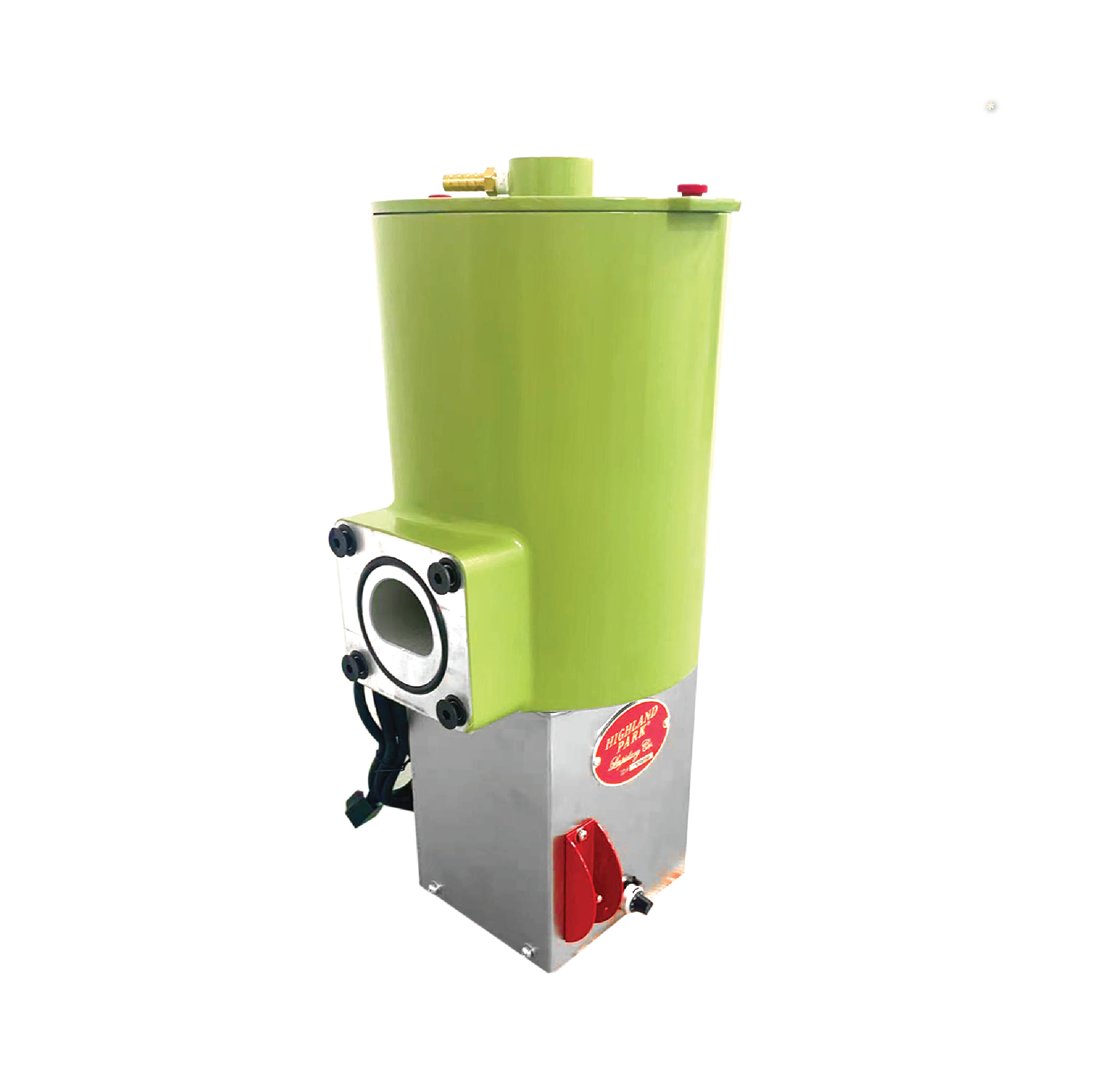

The Model EC2-110 NEW is for putting the Everclean System on Newer style Highland Park Saws that are already equipped with the mounting flange and pump connection fitting integrated in the the saw tank.
If you are mounting your EverClean II on an older saw that is not pre-equipped for the EverClean unit, then should purchase the Model EC2-110 RETRO - it will include the necessary parts for mounting the unit on an older saw or saw that is not already equipped for the Everclean unit.
Videos
Everclean Installation Overview
When installed on the side of your saw, the EverClean II will extend out 10 inches.
Priming EverClean Pump
Specifications
HIGHLAND PARK EVERCLEAN OIL CLEANING SYSTEM
FEATURES AND SPECIFICATIONS:
CLEANING MECHANISM – Centrifugal filtration system exerts nearly 700G for real-time oil de-sludging
CAPACITY – 1/2 gallon disposable sludge canister
HOUSING – Durable one-piece powder-coated cast aluminum
MOTOR – Brushless DC Variable Speed
APPROXIMATE SHIPPING WEIGHT – 65 lbs
FREE SHIPPING IN CONTINENTAL USA!
KEEP YOUR SAW EVERCLEAN™
The EverClean II is the latest evolution of our oil cleaning products that solves and improves on one of the age-old problems of oil contamination in slab saws. With the cost of oil running $15-$25/gallon, it can be very costly to do an oil change on your saw, not to mention that cleaning a saw is an undesirable dirty task. By cleaning the oil as you cut, the oil can be used for many years and reduces the wear on the internal components as well.
The centrifuge separates dirt particles from the oil and de-sludged oil is then returned back to the saw. Inside the unit, there is a removable canister, which collects and compacts the sludge.
The Everclean II allows for higher RPM's which increases the ability to remove much finer particulate and with the new arbor and seal design, allows for much higher pump flow rates. By adding variable speed on the controls, its easy to adjust the speed to avoid harmonic vibrations that can sometimes occur.
Owner's Manual
Model EC2 Oil Cleaning System Manual. View here
